Area, Perimeter and Circles

1. 1 Calculate [5 marks]

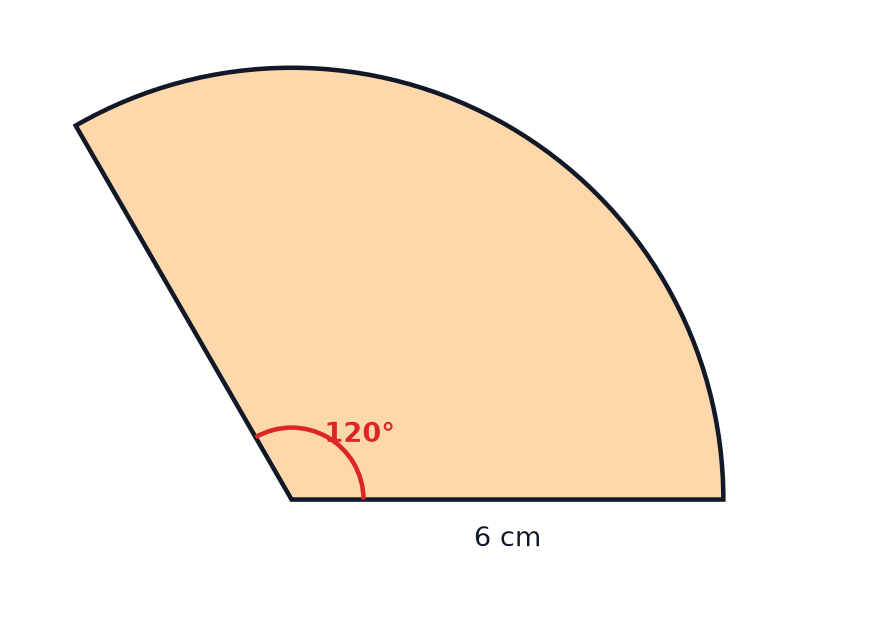

   The diagram shows a sector of a circle with radius 6 cm and angle \(120^\circ\). Give your answers in terms of \(\pi\). (a) Calculate the area of the sector. [2 marks] (b) Calculate the length of the arc. [2 marks] (c) Write down the perimeter of the sector. [1 mark]



   Show answerHide answer

   Model answer

   \(\dfrac{120}{360} = \dfrac{1}{3}\). (a) The area of the circle is \(\pi \times 36 = 36\pi\), so the sector is \(12\pi\) cm\(^2\). (b) The circumference is \(2\pi \times 6 = 12\pi\), so the arc is \(4\pi\) cm. (c) The perimeter is the arc plus two radii, \(4\pi + 6 + 6 = 12 + 4\pi\) cm.

   Mark scheme

   • (a) \(\dfrac{1}{3} \times \pi \times 6^2\) — M1
   • (a) \(12\pi\) — A1
   • (b) \(\dfrac{1}{3} \times 2 \times \pi \times 6\) — M1
   • (b) \(4\pi\) — A1
   • (c) \(12 + 4\pi\), with their arc if correct — B1
2. 2 Calculate [2 marks]

   A triangle has a base of 15 cm and a perpendicular height of 8 cm. Calculate the area of the triangle.

   Show answerHide answer

   Model answer

   \(\dfrac{1}{2} \times 15 \times 8 = 60\) cm\(^2\).

   Mark scheme

   • \(\dfrac{1}{2} \times 15 \times 8\) or \(15 \times 8 \div 2\) — M1
   • 60 cm\(^2\) — A1
3. 3 Calculate [3 marks]

   A trapezium has an area of 72 cm\(^2\). Its parallel sides are 7 cm and 11 cm long. Calculate the distance between the parallel sides.

   Show answerHide answer

   Model answer

   \(\dfrac{1}{2}(7 + 11) \times h = 72\), so \(9h = 72\) and \(h = 8\) cm.

   Mark scheme

   • \(\dfrac{1}{2}(7 + 11) \times h = 72\) or \(9h = 72\) — M1
   • \(72 \div 9\) — M1
   • 8 cm — A1
4. 4 Calculate [3 marks]

   A circle has diameter 16 cm. Give your answers in terms of \(\pi\). (a) Calculate the circumference of the circle. [1 mark] (b) Calculate the area of the circle. [2 marks]

   Show answerHide answer

   Model answer

   (a) \(\pi \times 16 = 16\pi\) cm. (b) The radius is 8 cm, so the area is \(\pi \times 8^2 = 64\pi\) cm\(^2\).

   Mark scheme

   • (a) \(16\pi\) — B1
   • (b) \(\pi \times 8^2\) — M1
   • (b) \(64\pi\) — A1
5. 5 Calculate [4 marks]

   A semicircle has radius 5 cm. Give your answers in terms of \(\pi\). (a) Calculate the area of the semicircle. [2 marks] (b) Calculate the perimeter of the semicircle. [2 marks]

   Show answerHide answer

   Model answer

   (a) \(\dfrac{1}{2} \times \pi \times 5^2 = 12.5\pi\) cm\(^2\). (b) The curved edge is \(\dfrac{1}{2} \times \pi \times 10 = 5\pi\) and the straight edge is 10 cm, so the perimeter is \(10 + 5\pi\) cm.

   Mark scheme

   • (a) \(\dfrac{1}{2} \times \pi \times 5^2\) — M1
   • (a) \(12.5\pi\) or \(\dfrac{25\pi}{2}\) — A1
   • (b) \(5\pi\) or the diameter 10 found — M1
   • (b) \(10 + 5\pi\) — A1
6. 6 Calculate [3 marks]

   A circular lawn has a radius of 8 m. A path 2 m wide goes all the way round the lawn. Calculate the area of the path. Give your answer in terms of \(\pi\).

   Show answerHide answer

   Model answer

   The lawn and path together have radius 10 m, so their area is \(100\pi\). The lawn has area \(64\pi\). The path is \(100\pi - 64\pi = 36\pi\) m\(^2\).

   Mark scheme

   • \(\pi \times 10^2\) or \(\pi \times 8^2\) — M1
   • \(100\pi - 64\pi\) — M1
   • \(36\pi\) m\(^2\) — A1

Quick check

1. 1

   A triangle has base 10 cm and perpendicular height 6 cm. What is its area?

   1. A60 cm\(^2\)
   2. B16 cm\(^2\)
   3. C30 cm\(^2\)
   4. D32 cm\(^2\)
   Show answerHide answer

   C: 30 cm\(^2\)

   \(\dfrac{1}{2} \times 10 \times 6 = 30\) cm\(^2\).

2. 2

   A trapezium has parallel sides of 7 cm and 13 cm, and a height of 6 cm. What is its area?

   1. A120 cm\(^2\)
   2. B60 cm\(^2\)
   3. C26 cm\(^2\)
   4. D78 cm\(^2\)
   Show answerHide answer

   B: 60 cm\(^2\)

   \(\dfrac{1}{2}(7 + 13) \times 6 = 60\). Forgetting the half gives 120.

3. 3

   A parallelogram has base 9 cm, slanted side 5 cm and perpendicular height 4 cm. What is its area?

   1. A36 cm\(^2\)
   2. B45 cm\(^2\)
   3. C18 cm\(^2\)
   4. D20 cm\(^2\)
   Show answerHide answer

   A: 36 cm\(^2\)

   \(\text{base} \times \text{perpendicular height} = 9 \times 4 = 36\). The slanted side is not used.

4. 4

   A circle has radius 5 cm. What is its area, in terms of \(\pi\)?

   1. A\(10\pi\) cm\(^2\)
   2. B\(5\pi\) cm\(^2\)
   3. C\(50\pi\) cm\(^2\)
   4. D\(25\pi\) cm\(^2\)
   Show answerHide answer

   D: \(25\pi\) cm\(^2\)

   \(\pi r^2 = \pi \times 25 = 25\pi\).

5. 5

   A circle has diameter 14 cm. What is its circumference, in terms of \(\pi\)?

   1. A\(7\pi\) cm
   2. B\(49\pi\) cm
   3. C\(14\pi\) cm
   4. D\(28\pi\) cm
   Show answerHide answer

   C: \(14\pi\) cm

   \(C = \pi d = 14\pi\).

6. 6

   A circle has diameter 10 cm. What is its area, in terms of \(\pi\)?

   1. A\(100\pi\) cm\(^2\)
   2. B\(25\pi\) cm\(^2\)
   3. C\(10\pi\) cm\(^2\)
   4. D\(50\pi\) cm\(^2\)
   Show answerHide answer

   B: \(25\pi\) cm\(^2\)

   The radius is \(10 \div 2 = 5\), so \(A = \pi \times 5^2 = 25\pi\). Using 10 as the radius gives \(100\pi\).

7. 7

   A rectangle measures 12 cm by 7 cm. A rectangle 5 cm by 3 cm is cut from one corner. What is the area of the remaining shape?

   1. A69 cm\(^2\)
   2. B99 cm\(^2\)
   3. C15 cm\(^2\)
   4. D84 cm\(^2\)
   Show answerHide answer

   A: 69 cm\(^2\)

   \(12 \times 7 = 84\) and \(5 \times 3 = 15\), so \(84 - 15 = 69\).

8. 8

   A sector has radius 9 cm and angle \(80^\circ\). What is its area, in terms of \(\pi\)?

   1. A\(4\pi\) cm\(^2\)
   2. B\(36\pi\) cm\(^2\)
   3. C\(81\pi\) cm\(^2\)
   4. D\(18\pi\) cm\(^2\)
   Show answerHide answer

   D: \(18\pi\) cm\(^2\)

   \(\dfrac{80}{360} \times \pi \times 81 = \dfrac{2}{9} \times 81\pi = 18\pi\).

9. 9

   A sector has radius 6 cm and angle \(60^\circ\). What is the length of its arc, in terms of \(\pi\)?

   1. A\(6\pi\) cm
   2. B\(\pi\) cm
   3. C\(2\pi\) cm
   4. D\(12\pi\) cm
   Show answerHide answer

   C: \(2\pi\) cm

   \(\dfrac{60}{360} \times 2 \times \pi \times 6 = \dfrac{1}{6} \times 12\pi = 2\pi\).
