Exam questions · Maths · Transformations and Similarity

Rotations

  • 6 exam questions
  • 16 marks
  • 9 quick checks
  1. 1 Write down [2 marks]

    Write down the coordinates of the image of the point \((5, -3)\) after a rotation of \(180^\circ\) about the origin. [2 marks]

    Show answerHide answer

    Model answer

    A \(180^\circ\) rotation about the origin changes the sign of both coordinates, so the image is \((-5, 3)\).

    Mark scheme

    • Both coordinates change sign — M1
    • \((-5, 3)\) — A1
  2. 2 Rotate [3 marks]

    Rotate triangle \(T\) through \(90^\circ\) anticlockwise about the origin \(O\). [3 marks]

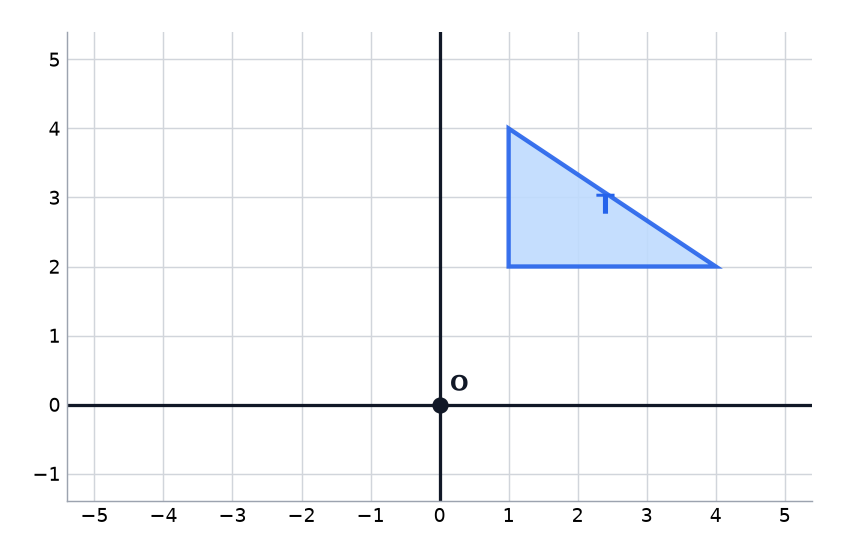

    Triangle T on a grid with the origin O marked.
    Show answerHide answer

    Model answer

    A \(90^\circ\) anticlockwise turn sends \((x, y)\) to \((-y, x)\). The vertices \((1, 2)\), \((4, 2)\) and \((1, 4)\) go to \((-2, 1)\), \((-2, 4)\) and \((-4, 1)\).

    Mark scheme

    • Rotates at least two vertices by \(90^\circ\) about the origin — M1
    • At least two vertices correct — A1
    • Triangle with vertices \((-2, 1)\), \((-2, 4)\) and \((-4, 1)\) — A1
  3. 3 Describe [3 marks]

    Describe fully the single transformation that maps triangle \(A\) onto triangle \(B\). [3 marks]

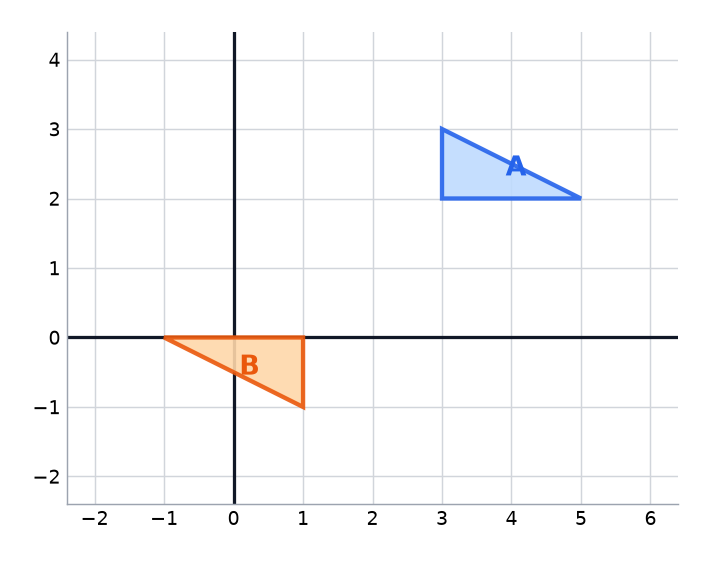

    Triangle A and its image triangle B on a grid.
    Show answerHide answer

    Model answer

    The point \((3, 2)\) goes to \((1, 0)\) and \((5, 2)\) goes to \((-1, 0)\). The midpoint of \((3, 2)\) and \((1, 0)\) is \((2, 1)\), and the same is true for the other pair, so it is a rotation of \(180^\circ\) about \((2, 1)\).

    Mark scheme

    • Rotation — B1
    • \(180^\circ\) — B1
    • About the point \((2, 1)\) — B1
  4. 4 Calculate [3 marks]

    The point \((-1, 4)\) is rotated through \(90^\circ\) clockwise about the origin. (a) Calculate the coordinates of the image. [2 marks] (b) The original point is instead rotated through \(180^\circ\) about the origin. Write down the coordinates of the image. [1 mark]

    Show answerHide answer

    Model answer

    (a) A \(90^\circ\) clockwise turn sends \((x, y)\) to \((y, -x)\), so \((-1, 4)\) goes to \((4, 1)\). (b) \((1, -4)\).

    Mark scheme

    • (a) Uses \((x, y) \to (y, -x)\) — M1
    • (a) \((4, 1)\) — A1
    • (b) \((1, -4)\) — B1
  5. 5 Find [2 marks]

    A rotation of \(180^\circ\) maps the point \((6, -1)\) onto the point \((0, 5)\). Find the coordinates of the centre of the rotation. [2 marks]

    Show answerHide answer

    Model answer

    The centre is the midpoint: \(\left(\dfrac{6 + 0}{2}, \dfrac{-1 + 5}{2}\right) = (3, 2)\).

    Mark scheme

    • \(\dfrac{6 + 0}{2}\) or \(\dfrac{-1 + 5}{2}\) — M1
    • \((3, 2)\) — A1
  6. 6 Calculate [3 marks]

    The point \(P\) is \((2, 3)\). \(P\) is rotated through \(90^\circ\) anticlockwise about the point \((1, 1)\) to give \(Q\). Calculate the coordinates of \(Q\). [3 marks]

    Show answerHide answer

    Model answer

    \(P\) is 1 right and 2 up from the centre. A \(90^\circ\) anticlockwise turn sends \((x, y)\) to \((-y, x)\), so \(Q\) is 2 left and 1 up from the centre. \(Q = (1 - 2, 1 + 1) = (-1, 2)\).

    Mark scheme

    • Position relative to the centre, \((1, 2)\) — M1
    • Rotates it to \((-2, 1)\) relative to the centre — M1
    • \((-1, 2)\) — A1

Quick check

  1. 1

    What three details describe a rotation?

    1. AThe mirror line and the angle
    2. BThe scale factor and the centre
    3. CThe centre, the angle and the direction
    4. DThe column vector and the angle
    Show answerHide answer

    C: The centre, the angle and the direction

    A rotation is described by its centre, its angle and its direction.

  2. 2

    What is the image of \((3, -2)\) in a \(180^\circ\) rotation about the origin?

    1. A\((3, 2)\)
    2. B\((-3, 2)\)
    3. C\((2, -3)\)
    4. D\((-3, -2)\)
    Show answerHide answer

    B: \((-3, 2)\)

    A \(180^\circ\) turn about the origin changes the sign of both coordinates.

  3. 3

    What is the image of \((2, 5)\) in a \(90^\circ\) anticlockwise rotation about the origin?

    1. A\((-5, 2)\)
    2. B\((5, -2)\)
    3. C\((-2, -5)\)
    4. D\((5, 2)\)
    Show answerHide answer

    A: \((-5, 2)\)

    A \(90^\circ\) anticlockwise turn sends \((x, y)\) to \((-y, x)\).

  4. 4

    What is the image of \((3, 1)\) in a \(90^\circ\) clockwise rotation about the origin?

    1. A\((-1, 3)\)
    2. B\((-3, -1)\)
    3. C\((-1, -3)\)
    4. D\((1, -3)\)
    Show answerHide answer

    D: \((1, -3)\)

    A \(90^\circ\) clockwise turn sends \((x, y)\) to \((y, -x)\).

  5. 5

    Why is no direction needed to describe a \(180^\circ\) rotation?

    1. AThe shape does not move
    2. BThe direction is always clockwise
    3. CA half turn is the same in both directions
    4. DThe centre decides the direction
    Show answerHide answer

    C: A half turn is the same in both directions

    A half turn clockwise ends in the same place as a half turn anticlockwise.

  6. 6

    Is the image of a rotation congruent to the object?

    1. ANo, it is always larger
    2. BYes, it has the same size and shape
    3. CNo, it is always smaller
    4. DOnly for a half turn
    Show answerHide answer

    B: Yes, it has the same size and shape

    A rotation does not change lengths or angles.

  7. 7

    What is the image of \((-2, 4)\) in a \(90^\circ\) clockwise rotation about the origin?

    1. A\((4, 2)\)
    2. B\((-4, -2)\)
    3. C\((2, 4)\)
    4. D\((-4, 2)\)
    Show answerHide answer

    A: \((4, 2)\)

    \((x, y)\) goes to \((y, -x)\), so \((-2, 4)\) goes to \((4, 2)\).

  8. 8

    The point \((4, 3)\) is rotated through \(180^\circ\) about the point \((1, 1)\). What is the image?

    1. A\((-4, -3)\)
    2. B\((-3, -2)\)
    3. C\((2, 1)\)
    4. D\((-2, -1)\)
    Show answerHide answer

    D: \((-2, -1)\)

    The point is 3 right and 2 up from the centre, so the image is 3 left and 2 down: \((1 - 3, 1 - 2) = (-2, -1)\).

  9. 9

    A \(180^\circ\) rotation takes \((1, 5)\) to \((5, 1)\). What is the centre of rotation?

    1. A\((0, 0)\)
    2. B\((4, 4)\)
    3. C\((3, 3)\)
    4. D\((6, 6)\)
    Show answerHide answer

    C: \((3, 3)\)

    The centre is the midpoint of a point and its image: \(\left(\dfrac{1 + 5}{2}, \dfrac{5 + 1}{2}\right) = (3, 3)\).
