EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Cumulative frequency

Further statistics

Lesson 2 of 6

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Warm-up

Further statistics

Lesson 2 of 6

Answer each one, then check.

1

What is the median?

2

What is the range?

3

Running total of 4, 11, 20?

4

What is a grouped frequency table?

5

Write the class 20 < t ≤ 30 in words.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Warm-up - Answers

Further statistics

Lesson 2 of 6

1

What is the median?

The middle value when the data are in order

2

What is the range?

Largest minus smallest

3

Running total of 4, 11, 20?

4, 15, 35

4

What is a grouped frequency table?

A table showing how many values fall in each class

5

Write the class 20 < t ≤ 30 in words.

More than 20 and up to and including 30

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Learning Objectives

Further statistics

Lesson 2 of 6

1

Work out cumulative frequencies from a grouped table.

2

Plot a cumulative frequency graph.

3

Estimate the median, lower quartile and upper quartile.

4

Find the interquartile range and answer questions from the graph.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Further statistics

Lesson 2 of 6

CUMULATIVE FREQUENCY

Cumulative frequency is a running total of the frequencies. Plot each total against the upper class boundary.

Points are joined with a smooth curve that always rises.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Building the Table

Further statistics

Lesson 2 of 6

Time taken (t minutes) to complete a puzzle, 60 students.

Time

Frequency

Cumulative frequency

0 < t ≤ 10

4

4

10 < t ≤ 20

11

15

20 < t ≤ 30

20

35

30 < t ≤ 40

16

51

40 < t ≤ 50

7

58

50 < t ≤ 60

2

60

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

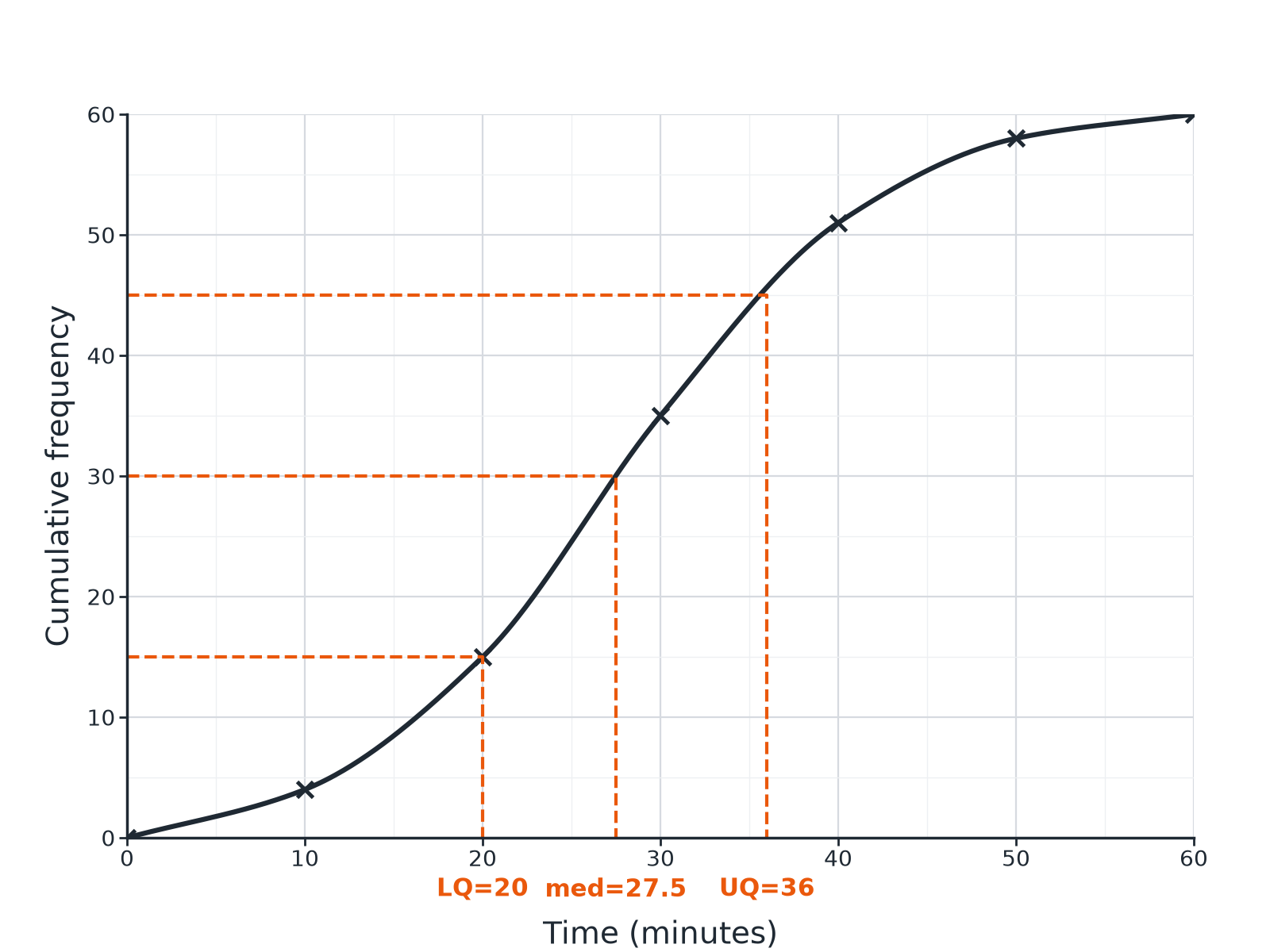

Reading the Curve

Further statistics

Lesson 2 of 6

Read the quartiles at one quarter, one half and three quarters of the total.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Reading Quartiles

Further statistics

Lesson 2 of 6

Use the total frequency n.

1

Median

Go across at n/2, then down to the x-axis

2

Lower quartile

Go across at n/4, then down

3

Upper quartile

Go across at 3n/4, then down

4

Interquartile range

IQR = UQ − LQ

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Median and Quartiles

Further statistics

Lesson 2 of 6

For the 60 students, estimate the median, the quartiles and the interquartile range.

1

Total

n = 60

2

Median

At 30: about 27.5 minutes

3

Lower quartile

At 15: 20 minutes

4

Upper quartile

At 45: about 36 minutes

5

Interquartile range

36 − 20 = 16 minutes

ANSWER

Median ≈ 27.5 minutes, IQR ≈ 16 minutes.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

How Many More Than...?

Further statistics

Lesson 2 of 6

Use the graph to estimate how many of the 60 students took more than 40 minutes.

1

Cumulative frequency at 40

51 students took 40 minutes or less

2

Subtract from the total

60 − 51 = 9

ANSWER

About 9 students took more than 40 minutes.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Common Mistakes

Further statistics

Lesson 2 of 6

Watch for these.

Wrong boundary

Plot at the upper class boundary, not the middle of the class.

Straight lines

The graph is a smooth curve, not a polygon (unless the question says so).

Reading frequency, not value

Go across from the cumulative frequency, then down to the data value.

Forgetting the start

The curve starts at the lowest boundary with a cumulative frequency of 0.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Key Terms

Further statistics

Lesson 2 of 6

Cumulative frequency

A running total of frequencies.

Upper class boundary

The largest value in a class.

Median

The middle value; the value at n/2.

Lower quartile

The value one quarter of the way through the data.

Upper quartile

The value three quarters of the way through the data.

Interquartile range

Upper quartile minus lower quartile.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Further statistics

Lesson 2 of 6

YOUR TASK

Build a Cumulative Frequency Table

12 minutes

Heights (h cm) of 40 plants: 0 < h ≤ 10: 3, 10 < h ≤ 20: 9, 20 < h ≤ 30: 16, 30 < h ≤ 40: 8, 40 < h ≤ 50: 4. (a) Complete the cumulative frequency column. (b) At what value of n do you read the median?

1

Add each frequency to the running total.

2

The last total equals the total frequency.

WHAT A GOOD ANSWER SHOWS

(a) 3, 12, 28, 36, 40. (b) 40/2 = 20, which lies in the class 20 < h ≤ 30.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Can I...?

Further statistics

Lesson 2 of 6

Find cumulative frequencies.

Plot at upper class boundaries.

Draw a smooth curve.

Read the median.

Read the quartiles.

Find the IQR.

Find how many are above or below a value.

Avoid common mistakes.

openrevise.com

EDEXCEL GCSE MATHS · FOUNDATION & HIGHER

Summary & Exam Focus

Plot cumulative frequency against upper class boundaries.

Median at n/2, LQ at n/4, UQ at 3n/4.

IQR = UQ − LQ.

Values read from a graph are estimates.

EXAM FOCUS

The cumulative frequency graph shows the times taken by 80 students. Use it to estimate the median and the interquartile range. (4 marks)

Show your dashed lines on the graph and write the values down.
