EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Scatter graphs
Interpreting and representing data
Lesson 3 of 6
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Last Lesson and Before
Interpreting and representing data
Lesson 3 of 6
Answer each one, then check.
1
Last lesson: what is a trend?
2
Last lesson: what goes on the horizontal axis of a time series?
3
Plot (4, 7): which way first?
4
Which is continuous: height or number of pets?
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Last Lesson and Before - Answers
Interpreting and representing data
Lesson 3 of 6
1
Last lesson: what is a trend?
The general direction of data over time.
2
Last lesson: what goes on the horizontal axis of a time series?
Time
3
Plot (4, 7): which way first?
4 across, then 7 up.
4
Which is continuous: height or number of pets?
Height
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Learning Objectives
Interpreting and representing data
Lesson 3 of 6
1
Plot a scatter graph from two sets of data.
2
Describe the correlation: positive, negative or none.
3
Say whether correlation is strong or weak.
4
Identify outliers.
5
Explain that correlation does not prove that one thing causes another.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
What Is a Scatter Graph?
Interpreting and representing data
Lesson 3 of 6
A scatter graph shows two sets of data about the same people or things.
Bivariate data
Two measurements for each item: a student's height AND their shoe size.
One point each
Each item is one point, plotted using its two values as coordinates.
Do not join the points
The points are separate items; there is no order to follow.
Look at the shape
The pattern of the points shows whether the two measurements are related.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Types of Correlation
Interpreting and representing data
Lesson 3 of 6

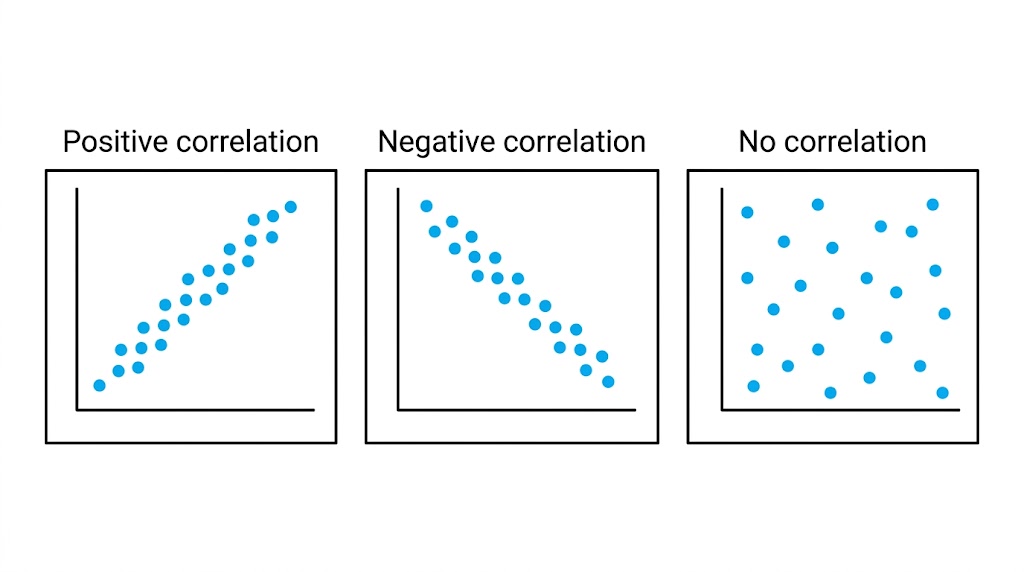

Up together, one up and one down, or no pattern at all.
Positive correlation means as one value increases, so does the other. Negative correlation means as one increases, the other decreases. No correlation means there is no clear relationship at all.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Describing Correlation
Interpreting and representing data
Lesson 3 of 6
Positive
As one goes up, the other goes up. Height and shoe size.
Negative
As one goes up, the other goes down. The age of a car and its value.
No correlation
No relationship. Height and score in a maths test.
Strong or weak
Strong: the points lie close to a straight line. Weak: they are more spread out but still show a pattern.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Outliers
Interpreting and representing data
Lesson 3 of 6
An outlier is a point that does not fit the pattern of the rest.
Spotting one
A point well away from the others - for example, a very old car that is worth a lot because it is a classic.
Why it happens
A mistake in recording the data, or a genuinely unusual item.
What to do
Do not simply delete it. Note it, and think about why it is different.
In the exam
You may be asked to circle it or give its coordinates.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Correlation Is Not Causation
Interpreting and representing data
Lesson 3 of 6
WHAT CORRELATION SHOWS
• Two things tend to change together.
• It can help you make predictions.
• It can suggest an idea worth testing.
WHAT IT DOES NOT SHOW
• That one thing causes the other.
• Ice cream sales and sunburn are positively correlated - but ice cream does not cause sunburn.
• Both are caused by a third thing: hot, sunny weather.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Interpreting and representing data
Lesson 3 of 6
CASE STUDY
"Storks Deliver Babies"
In 2000 the statistician Robert Matthews published a paper called "Storks Deliver Babies (p = 0.008)". Using data from 17 European countries, he showed a genuine positive correlation between the number of breeding pairs of storks in a country and the number of babies born there each year. Of course storks do not deliver babies. Bigger countries simply have more room for storks AND more people having babies. His point was that a strong correlation, however convincing it looks, never proves that one thing causes the other.
2000
Matthews publishes the stork paper
17
European countries in his data
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Key Terms
Interpreting and representing data
Lesson 3 of 6
Scatter graph
A graph plotting two sets of data about the same items as points.
Bivariate data
Data with two values for each item.
Correlation
A relationship between two sets of data.
Positive correlation
As one value increases, the other increases.
Negative correlation
As one value increases, the other decreases.
Outlier
A value that does not fit the pattern of the rest of the data.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Interpreting and representing data
Lesson 3 of 6
YOUR TASK
Correlated or Not?
10 minutes
For each pair, predict the correlation (positive, negative or none) and say whether one could cause the other. (a) Temperature outside and number of hot drinks sold. (b) Hours of revision and test score. (c) Arm span and height. (d) House number and number of people living there. (e) Number of firefighters at a fire and the damage done.
1
Predict the correlation.
2
Decide if one causes the other.
3
Look for a hidden third factor.
WHAT A GOOD ANSWER SHOWS
(a) Negative; plausibly causal. (b) Positive; plausibly causal, but other factors matter. (c) Strong positive; both depend on body size. (d) None. (e) Positive - but firefighters do not cause damage: bigger fires need more firefighters AND cause more damage.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Can I...?
Interpreting and representing data
Lesson 3 of 6
Plot a scatter graph.
Describe positive correlation.
Describe negative correlation.
Recognise no correlation.
Say if correlation is strong or weak.
Identify an outlier.
Interpret correlation in context.
Explain that correlation is not causation.
openrevise.com
EDEXCEL GCSE MATHS · FOUNDATION & HIGHER
Summary & Exam Focus
A scatter graph plots two measurements for each item; do not join the points.
Correlation is positive, negative or none, and strong or weak.
An outlier does not fit the pattern.
Correlation does not prove causation: look for a third factor.
EXAM FOCUS
Describe the relationship between the temperature and the number of hot chocolates sold. (1 mark)
"Describe the relationship" wants a sentence in context: "as the temperature increases, the number of hot chocolates sold decreases". Just "negative" may not get the mark.
openrevise.com
