Trigonometric Graphs and Exact Values

  • 6 exam questions
  • 16 marks
  • 9 quick checks
  1. 1 Solve [2 marks]

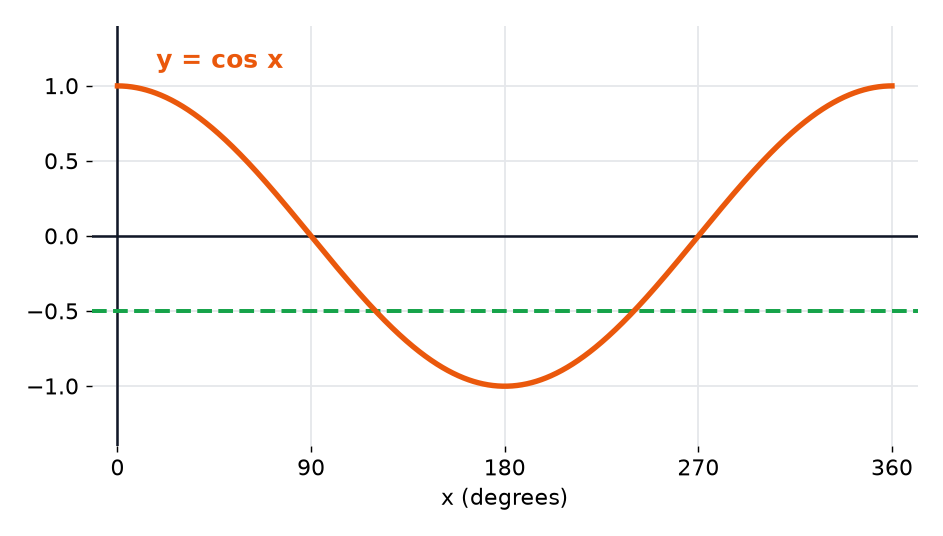

    The diagram shows the graph of \(y = \cos x\) for \(0^\circ \le x \le 360^\circ\), and the line \(y = -0.5\). Solve \(\cos x = -0.5\) for \(0^\circ \le x \le 360^\circ\). [2 marks]

    The graph of cosine from 0 to 360 degrees with the line y equals minus 0.5 crossing the curve twice.
    Show answerHide answer

    Model answer

    \(\cos 60^\circ = 0.5\), and cosine is negative between \(90^\circ\) and \(270^\circ\), so \(x = 180 - 60 = 120^\circ\) or \(x = 180 + 60 = 240^\circ\).

    Mark scheme

    • \(120\) — M1
    • \(240\) — A1
  2. 2 Write down [3 marks]

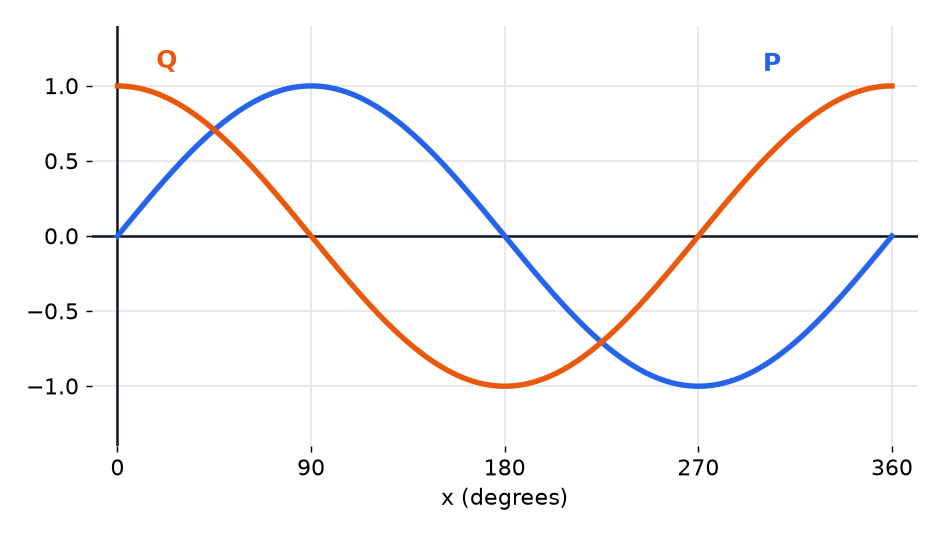

    The diagram shows the graphs of two curves, \(P\) and \(Q\), for \(0^\circ \le x \le 360^\circ\). One is \(y = \sin x\) and the other is \(y = \cos x\). (a) State which curve is \(y = \sin x\). [1 mark] (b) Solve \(\sin x = \cos x\) for \(0^\circ \le x \le 360^\circ\). [2 marks]

    Two wave graphs, one starting at the origin and one starting at 1, crossing at two points.
    Show answerHide answer

    Model answer

    (a) \(P\), because it passes through the origin. (b) The curves cross at \(x = 45^\circ\), where \(\sin 45^\circ = \cos 45^\circ = \dfrac{\sqrt{2}}{2}\), and at \(x = 225^\circ\).

    Mark scheme

    • (a) Curve P, because it starts at the origin — B1
    • (b) \(45\) — B1
    • (b) \(225\) — B1
  3. 3 Write down [3 marks]

    Write down the exact value of (a) \(\sin 135^\circ\) [1 mark] (b) \(\cos 135^\circ\) [1 mark] (c) \(\tan 150^\circ\) [1 mark]

    Show answerHide answer

    Model answer

    (a) \(\dfrac{\sqrt{2}}{2}\). (b) \(-\dfrac{\sqrt{2}}{2}\). (c) \(-\dfrac{\sqrt{3}}{3}\), which is the same as \(-\dfrac{1}{\sqrt{3}}\).

    Mark scheme

    • (a) \(\dfrac{\sqrt{2}}{2}\) — B1
    • (b) \(-\dfrac{\sqrt{2}}{2}\) — B1
    • (c) \(-\dfrac{1}{\sqrt{3}}\) or \(-\dfrac{\sqrt{3}}{3}\) — B1
  4. 4 Solve [3 marks]

    Solve \(2\cos x + 1 = 0\) for \(0^\circ \le x \le 360^\circ\). [3 marks]

    Show answerHide answer

    Model answer

    \(\cos x = -\dfrac{1}{2}\), so \(x = 120^\circ\) or \(x = 240^\circ\).

    Mark scheme

    • \(\cos x = -\dfrac{1}{2}\) — M1
    • \(120\) — A1
    • \(240\) — A1
  5. 5 Solve [3 marks]

    Solve \(\tan x = -\sqrt{3}\) for \(0^\circ \le x \le 360^\circ\). [3 marks]

    Show answerHide answer

    Model answer

    \(\tan 60^\circ = \sqrt{3}\), and tangent is negative between \(90^\circ\) and \(180^\circ\), and between \(270^\circ\) and \(360^\circ\). So \(x = 180 - 60 = 120^\circ\) or \(x = 360 - 60 = 300^\circ\).

    Mark scheme

    • Uses \(60^\circ\) as the related angle — M1
    • \(120\) — A1
    • \(300\) — A1
  6. 6 Write down [2 marks]

    (a) Write down the period of the graph of \(y = \tan x\). [1 mark] (b) How many solutions does \(\cos x = 0.3\) have for \(0^\circ \le x \le 720^\circ\)? [1 mark]

    Show answerHide answer

    Model answer

    (a) \(180^\circ\). (b) Four solutions, two in each \(360^\circ\).

    Mark scheme

    • (a) \(180^\circ\) — B1
    • (b) 4 — B1

Quick check

  1. 1

    What is the maximum value of \(y = \sin x\)?

    1. A0
    2. B1
    3. C90
    4. D\(\infty\)
    Show answerHide answer

    B: 1

    The sine graph is a wave between \(-1\) and \(1\).

  2. 2

    What is \(\cos 0^\circ\)?

    1. A1
    2. B0
    3. C\(-1\)
    4. D\(\dfrac{1}{2}\)
    Show answerHide answer

    A: 1

    The cosine graph starts at its maximum, 1.

  3. 3

    Where are the asymptotes of \(y = \tan x\) between \(0^\circ\) and \(360^\circ\)?

    1. A\(x = 0^\circ\) and \(x = 180^\circ\)
    2. B\(x = 45^\circ\) and \(x = 135^\circ\)
    3. C\(x = 180^\circ\) and \(x = 360^\circ\)
    4. D\(x = 90^\circ\) and \(x = 270^\circ\)
    Show answerHide answer

    D: \(x = 90^\circ\) and \(x = 270^\circ\)

    The tangent is undefined at \(90^\circ\) and \(270^\circ\).

  4. 4

    How many solutions does \(\sin x = \dfrac{1}{2}\) have for \(0^\circ \le x \le 360^\circ\)?

    1. A1
    2. B3
    3. C2
    4. D4
    Show answerHide answer

    C: 2

    The line \(y = \dfrac{1}{2}\) crosses the sine curve twice, at \(30^\circ\) and \(150^\circ\).

  5. 5

    If \(\sin 30^\circ = \dfrac{1}{2}\), what is the other solution of \(\sin x = \dfrac{1}{2}\) between \(0^\circ\) and \(360^\circ\)?

    1. A\(120^\circ\)
    2. B\(150^\circ\)
    3. C\(210^\circ\)
    4. D\(330^\circ\)
    Show answerHide answer

    B: \(150^\circ\)

    The second solution is \(180^\circ - 30^\circ = 150^\circ\).

  6. 6

    What is the period of \(y = \tan x\)?

    1. A\(180^\circ\)
    2. B\(360^\circ\)
    3. C\(90^\circ\)
    4. D\(45^\circ\)
    Show answerHide answer

    A: \(180^\circ\)

    The tangent graph repeats every \(180^\circ\).

  7. 7

    Solve \(\cos x = \dfrac{1}{2}\) for \(0^\circ \le x \le 360^\circ\).

    1. A\(60^\circ\) and \(120^\circ\)
    2. B\(30^\circ\) and \(330^\circ\)
    3. C\(60^\circ\) and \(240^\circ\)
    4. D\(60^\circ\) and \(300^\circ\)
    Show answerHide answer

    D: \(60^\circ\) and \(300^\circ\)

    \(\cos 60^\circ = \dfrac{1}{2}\), and the second solution is \(360^\circ - 60^\circ = 300^\circ\).

  8. 8

    Solve \(\sin x = -\dfrac{1}{2}\) for \(0^\circ \le x \le 360^\circ\).

    1. A\(30^\circ\) and \(150^\circ\)
    2. B\(120^\circ\) and \(240^\circ\)
    3. C\(210^\circ\) and \(330^\circ\)
    4. D\(150^\circ\) and \(210^\circ\)
    Show answerHide answer

    C: \(210^\circ\) and \(330^\circ\)

    Sine is negative between \(180^\circ\) and \(360^\circ\), so the solutions are \(180 + 30 = 210\) and \(360 - 30 = 330\).

  9. 9

    Which equation has no solutions?

    1. A\(\cos x = -1\)
    2. B\(\sin x = 1.5\)
    3. C\(\tan x = 5\)
    4. D\(\sin x = 0\)
    Show answerHide answer

    B: \(\sin x = 1.5\)

    Sine and cosine are never greater than 1, so \(\sin x = 1.5\) has no solution.
